Camera hành trình 4G
Máy ghi giao thông 4G (LTE CAT 1 / GNSS)
Máy quay hành trình 4G LTE thời gian thực hỗ trợ định vị vệ tinh thời gian thực và ghi hình video thời gian thực. Dữ liệu video và báo động có thể được tải lên từ xa để giải quyết chống trộm xe, chống va chạm trầy xước, xảy ra tai nạn trên, lần đầu tiên báo cáo với nền tảng và chủ sở hữu
Mô tả sản phẩm
Physical specification | |

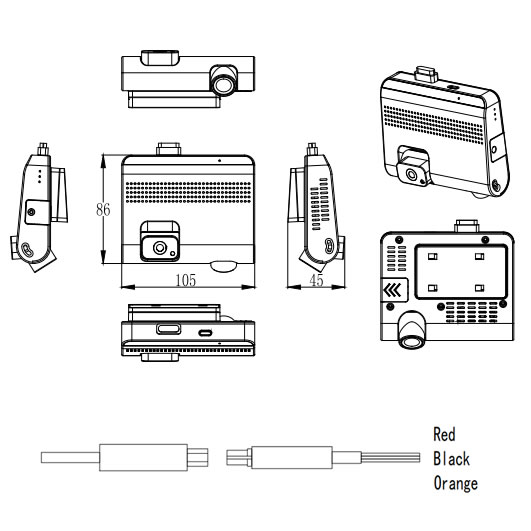

Dimensions | |
Weight | 240g |
Module | |
Name | RC10E |
Technology | LTE Cat 1/GNSS |
GNSS | |
GNSS | GPS,GLONASS,GALILEO,BEIDOU,AGPS,QZSS,SBAS |
Receiver | 64 channel |
TrackingSensitivity | -160 dB |
PositionAccuracy | < 2.0 m CEP |
VelocityAccuracy | < 0.1 m/s |
HotStart | < 1 s |
WarmStart | < 4 s |
ColdStart | < 28 s |
Cellular | |
Technology | LTECat 1 |
4GLTECat 1 bands | LTEFDD:B1/B3/B5/B8/B34 LTETDD:B38/B39/B40/B41 |
Data transfer | LTE:Max10Mbps(DL)/Max5Mbps(UL) |
Datasupport | SMS |
Power | |
InputVoltagerange | 9‒36VDC |
Power Consumption | At12V<6mA(OnlineSleep) At12V<150mA(Normal) At12V<270mA(Full load) |
Operatingenvironment |
|
OperatingTemperature | -20 °C to +70°C |
StorageTemperature | -40 °C to +85 °C |
OperatingHumidity | 5% to 95% non-condensing |
Interface | |
DigitalInputs | 2 |
GNSSAntenna | InternalHighGain |
CellularAntenna | Internal4G High Gain |
LEDIndication | 3 status LED lights |
SIM | Micro-SIM |
System structure | linux |
Chip | HC1723C |
Resolution | 2.0MP |
Sensor Resolution | 1920*1080 |
Lens | Forward:3.6MM backward:2.8MM |
View angle | Forward:110°D backward:140°D |
Pan-til | Forward:50° backward:40° |
Video compression standard | H.265(default)/H264 25FPS |
Video format | MP4 |
Electronic shutter | Auto |
Backlight compensation | Support |
Audio In | Mic (G711_A) |
Audio Out | speaker |
Storage | TF Card(Max 128G) |
function | |
Video recording | After the device is powered on, the system automatically starts recording videos. 1080P resolution HD loop video |
4G communication | The device can upload data information, video, driving track, vehicle alarm and so on through the mobile network |
Real-time positioning | GPS&BD dual mode positioning can record vehicle trajectory |
Vibration alarm | After extinguishing (ACC off) the vehicle vibration is detected, a vehicle vibration alarm is immediately triggered and uploaded to the platform, at the same time, a photo is uploaded, and the wake up device recording lasts for five minutes |
Collision alarm | In the process of driving, if there is a vehicle collision, a vehicle collision alarm should be immediately started and uploaded to the platform, and the first 10s to 5s video should be pushed to the platform. |

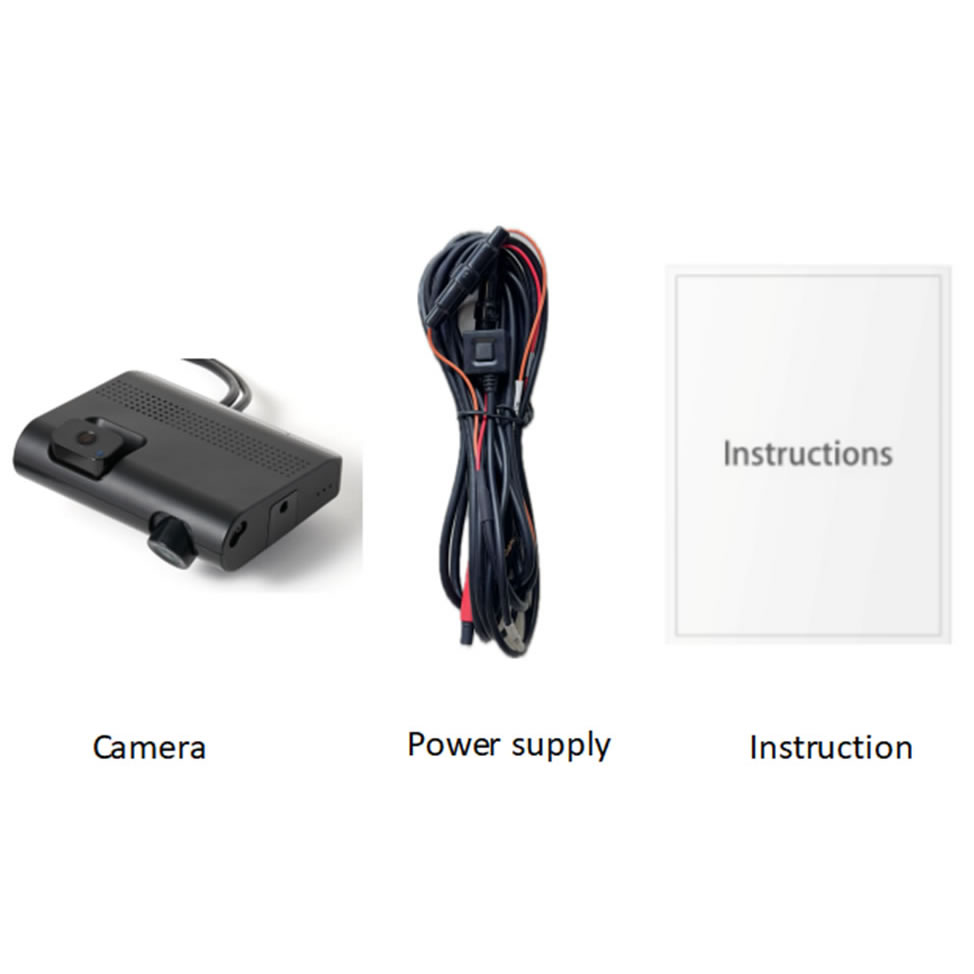

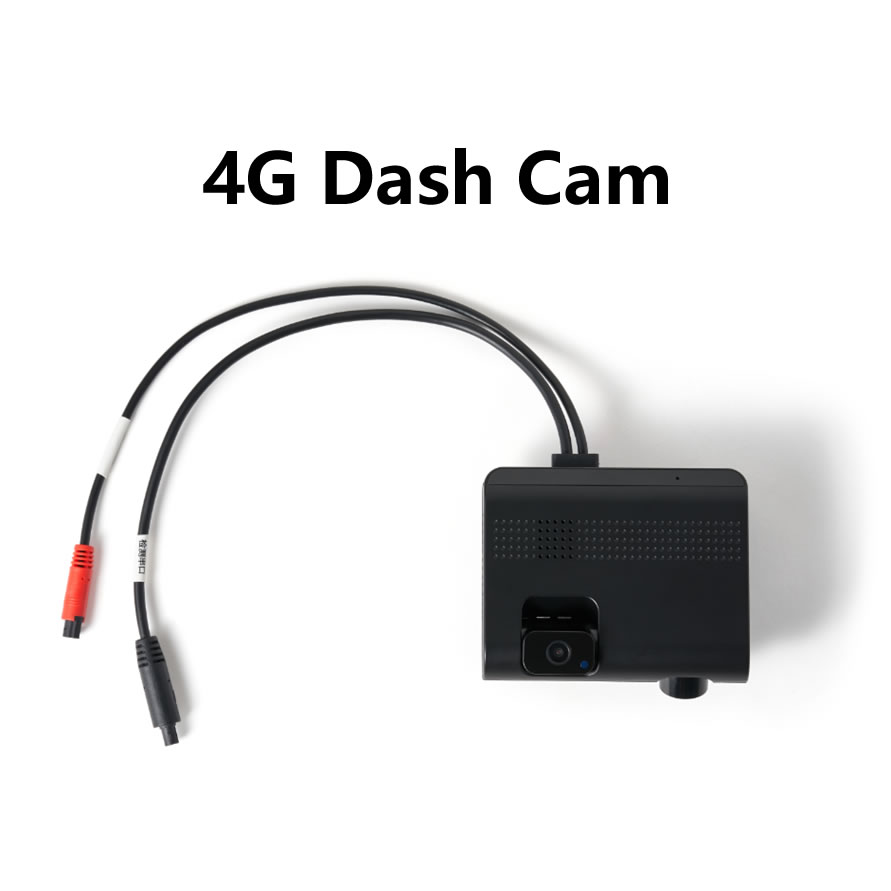

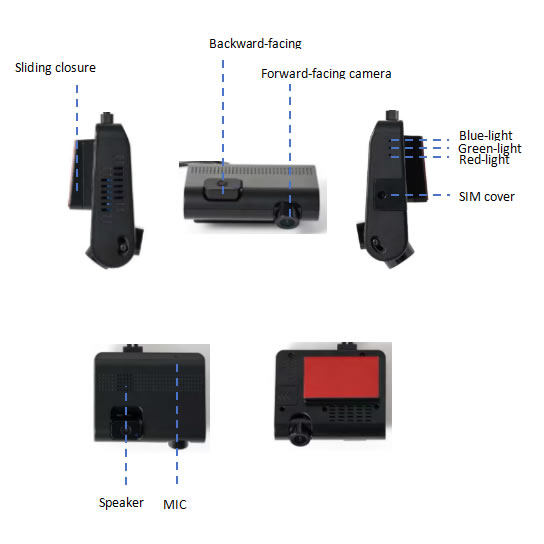

Product Display
NO | Colour | Interfacedefinition |
1 | Red | Power+ |
2 | Black | PowerGND |
3 | Orange | ACC |

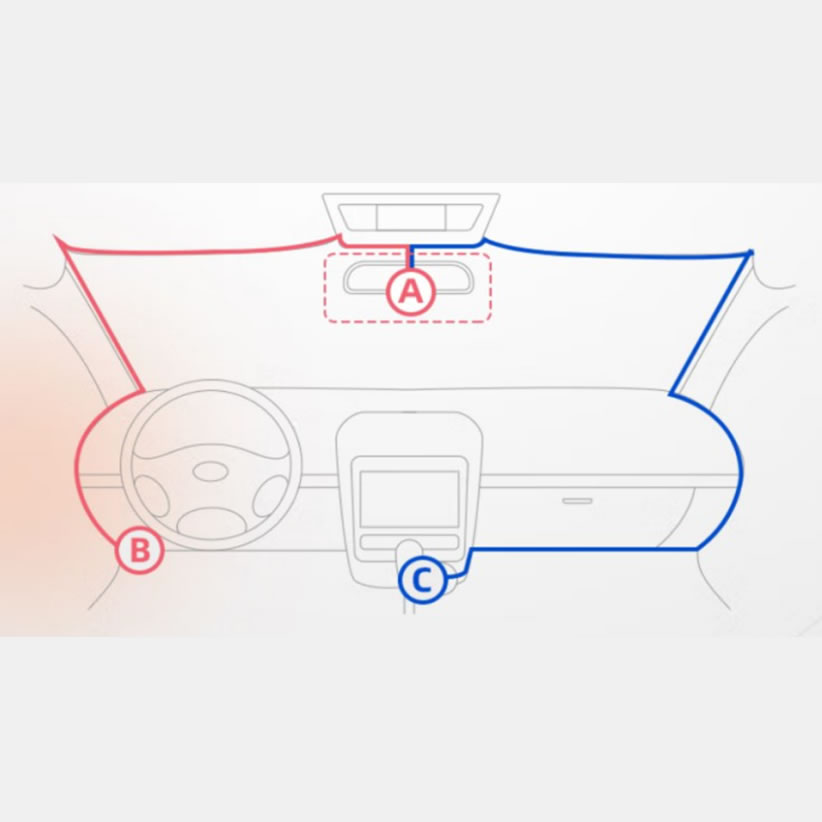

Vị trí lắp đặt
Để đảm bảo thiết bị hoạt động đầy đủ chức năng và căn chỉnh đẹp mắt và được che giấu, thiết bị hoạt động ổn định với cáp nguồn cầu chì thay thế. Cũng có thể sử dụng cáp nguồn USB để lấy nguồn từ nguồn điện của xe (bật lửa thuốc lá). Trong trường hợp này, máy ghi âm sẽ chỉ hoạt động bình thường khi xe khởi động, khi xe tắt máy, máy ghi âm sẽ ngoại tuyến và ngắt kết nối, và bạn sẽ không
